ToughArmor MB411SPO-2B (Fits 9.5mm height ODD Slot)
Image Gallery
REMOVABLE 2.5" SSD / HDD ENCLOSURES
Related Products:

mb411spo-b mb411sko-b mb411spo-1b mb511spo-b
mb511spo-1b mb852m2po-b


Introducing the ToughArmor MB411SPO-2B, a full metal 2.5" SATA hard drive / SSD mobile rack designed to fit into a 9.5mm Ultra slimline optical disk drive bay (Ultra Slim ODD bay) that is available in All-In-One PCs and Desktop Computers. The MB411SPO-2B uses a full metal construction to ensure maximum device lifespan and is capable of withstanding the harshest environments. The EZ Slide Slim removable drive tray supports any standard 2.5" SATA hard drives and solid-state drives (SSD) between 5 to 9.5mm height and provides hot-swap capability for quick drive removal and easy drive maintenance. In addition, the MB411SPO-2B supports up to 6Gbps transfer speed, with a receiving connector rated for up to 10,000 drive insertions.



Utilizing its ruggedized design and hot-swap drive function, the MB411SPO-2B is a perfect storage device for those who need a robust and removable drive enclosure to store, transport, and protect their sensitive data such as government agencies, digital cinemas, and small business organizations.





Ultra Slim ODD Bay Compatible
The ToughArmor MB411SPO-2B has the exact same form factor of an ultra-slim optical disk drive, including the outer dimensions, port locations, and mounting holes, allowing it to fit perfectly into any 9.5mm ultra-slim optical bay. The MB411SPO-2B allows you quickly add a hot-swappable 2.5" SATA HDD / SSD to any system with a slim optical drive bay such as All-In-One PCs, Rackmount Computers, Industrial PCs, Workstations, Desktop Computers, Embedded Control Systems, and Factory Automation Systems.

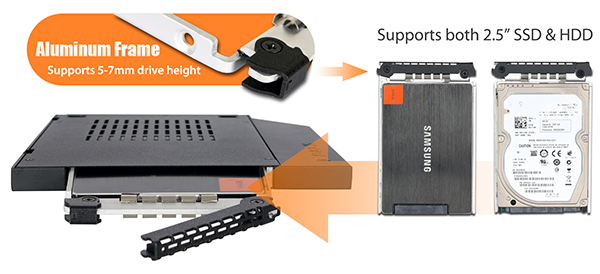

Removable 2.5” Drive Design
The EZ Slide Slim removable drive tray supports hot-swap and makes drive maintenance completely hassle-free in the event of a drive failure, drive transport, and drive archive. With this tray, downtime from a swap of a hard drive is now greatly reduced. The tray is built with robust solid metal frames that securely mount and protect 5mm to 7mm height 2.5" SATA HDD/SSD, creating a reliable 2.5" hot-swap bay for any standard ultra-slim optical disk drive bay. The EZ Slide Slim removable drive tray is also compatible with ToughArmor MB993SK-B, making drive interchangeability between systems as easy as 1-2-3.



Exceptional Build Quality
Ensuring the material used can be relied upon for many years after its deployment, the MB411SPO-2B has a heavy-duty metal construction throughout the entire device, capable of holding up in the harshest environments. The full metal design is ideal for industrial devices that may require a flammability rating since a full-metal construction already complies with flammability requirements.



Versatile Utility & Security
To bring more utility to your hard drives and SSDs, a LED is installed into the front of the mobile rack to provide drive status information at all times. Active Power Technology (APT) allows device power to be on only when a drive is inserted into the enclosure. The ToughArmor MB411SPO-2B uses a single 13-pin slimline SATA cable to power & access the MB411SPO-2B.


Drive Tray

EZ-Slide Slim Tray

Interchangeable Internal ToughArmor:



Key Features

*
Exact same form factor of an ultra slim optical drive.
*
Fits 1 x 5mm to 7mm height 2.5" SATA HDD / SSD in a 9.5mm ultra slim ODD bay.
*
Supports transfer speed up to 6Gbps
*
The receiving SATA connector rated for up to 10,000 drive insertions
*
Removable EZ Slide Slim drive tray for easy maintenance.
*
Heavy duty full metal construction design - perfect for enterprise applications
*
Multi-Flow Technology provides excellent passive cooling
*
Anti-Vibration Technology creates a safe environment for hard drives or SSDs
*
Active Power Technology (APT) powers up individual LED if only there is a drive installed in the drive bay
*
EMI Grounding protects hard drives from electrical damage
*
Ideal 2.5" drive mobile rack for systems with ultra-slim ODD bay, including Rackmount PCs, IPCs, Workstations, All-In-One Computer, Desktop PCs, Embedded Control Systems, and Factory Automation Systems.
*
Limited 3 year warranty to complement the typical warranty of a hard drive.
3 Years Warranty
Product Name :
2.5" SAS/ SATA Mobile Rack for Ultra Slim ODD Bay
Model Number :
MB411SPO-2B
Color :
Black
Support Drive Size :
1 x 2.5" SSD / HDD
Compatible Drive Type :
SATA
Number of Drives :
1
Max Drive Height :
7mm
Drive Bay :
1 x external Ultra Slim ODD Bay
Host Interface :
1 x Slimline SATA 7pin
Power Input :
Slimline SATA 6pin
Transfer Rate :
Up to 6Gbps (Depending on hard drive speed)
Support HDD Capacity :
No Limitation
Drive Cooling :
Metal heat dispersion with passive cooling
Structure / Material :
Metal with partial plastic
Support Hot-Swap :
Yes
Product Dimension (L x W x H) :
129.4 x 127.8 x 9.5mm
Product Net Weight :
151g
Package Net Weight :
195.3g
Drive Activity LED Indication :
Drive power: solid green; HDD access: flashing green
Package contents :
1x Device, 1x user manual, 12x screw
Product Name :
2.5" SAS/ SATA Mobile Rack for Ultra Slim ODD Bay
SATA Connector Insertion Rate :
10,000
Humidity :
5%~65% RH
Opertating Temperature :
0°C to 60°C (32°F to 140°F)
Storage Temperature :
-35°C to 70°C (-31°F to 158°F)
Compliance :
CE, RoHS, REACH
Warranty :
3 years
Documents

Purchase Links
Product Reviews

Review of Icy Dock ToughArmor MB411SPO-2B 5-7mm 2.5" SSD / HDD Hot-Swap SATA Mobile Rack for 9.5mm Ultra Slim CD/DVD-ROM Optical Bay

Published on April 11, 2018 by Schoondoggy


I have been looking for a workable solution for moving large files from a HPE MicroServer to other servers in various locations. These files are a bit large for cloud upload and distribution. A quick look around Icy Dock I found the MB411SPO-2B. The MB411SPO-2B is a 5-7mm 2.5" SSD / HDD Hot-Swap SATA Mobile Rack for 9.5mm Ultra Slim CD/DVD-ROM Optical bays.

Read Full Article on HomeServerShow.com








Frequent Asked Questions

Q: I'm connecting SATA SSD to the MB411SPO-2B, but the drives did not show up in my system. However, when I connect the SSD directly to the motherboard/add-on card, I can access the SSD without a problem.


A:It may be the SATA signal decreasing when connecting multiple bridges at the same time and causing the issue. Using a higher quality or shorter cable may solve this problem. However, if the problem occurs after replacing the cable, it may be the SSD/HDD you are using requires 12V power, which is not supported by MB411SPO-2B. The MB411SPO-2B is using the Slimline SATA power that does not carry the 12V power. Therefore, please avoid choosing the SSD/HDD that requires 12V power.





Please see the list below for the SATA drive that using the 12V power.



Seagate Nytro 1351 XA3840LE10063 / XA1920LE10063 / XA960LE10063 / XA1920LE10083 / XA960LE10083 / XA1920LE10103 / XA960LE10103
Nytro 1551 XA384ME10063 / XA1920ME10063 / XA960ME10063 / XA1920ME10083 / XA960ME10083 / XA1920ME10103 / XA960ME10103
IronWolf 110 ZA3840NM10001 / ZA1920NM10001 / ZA960NM10001



Note: The MB411SPO-2B does not support SAS HDD/SSD, which also requires 12V power to be operated.



Q: Which laptops are incompatible?


A: Due to specific features of laptop design, there are certain models of laptops that are not compatible with the MB411 and MB511 series. One stems from the physical form factor and the other stems from the pinout design of the optical drive bay connector. Regarding the pinout design, there are 4 different pinout design currently in use, referred as A, B, C, D modes. The MB411 and MB511 series uses the C mode of pinout.



As of now, this is the known list of incompatible laptops:

All Lenovo models, Dell M4800, M4801, M6800, HP M7



Not being on the list of incompatible laptops does not guarantee functionality of the MB411 and MB511 series in the laptop. It is best to contact the manufacturer of the laptop to determine optical drive bay pinout design.
