REMOVABLE 2.5" SSD / HDD ENCLOSURES
|

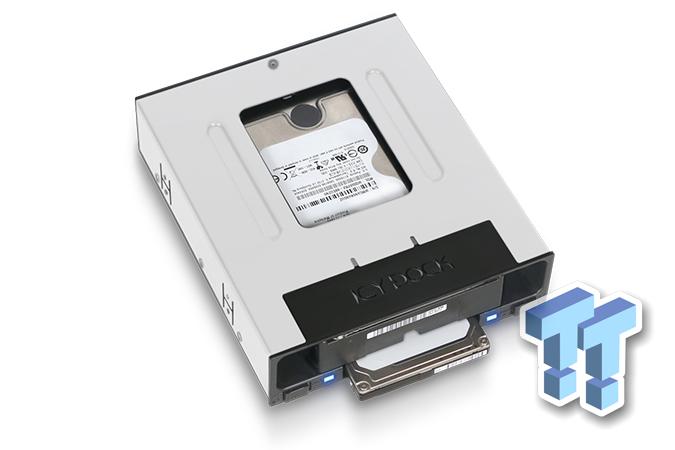

The ICY DOCK flexiDOCK MB795SP-B combines a 3.5" and 2.5" hot-swappable HDD or SSD drive bay into a single external 5.25" bay. The tray-less design makes it hassle-free to install or remove 2.5" or 3.5" HDD/SSDs, simply slide in a bare drive and it's connected, there's never a need for tools or screws. When you're ready to eject your drive, the recessed front housing makes it easy to pull out your drive by hand, improving reliability with the simple and convenient design. Individual power switches let you shut down your drives with a single switch, protecting them from viruses and letting you select which drive to boot from by completely cutting power from the drives so they cannot be accessed until you are ready to use them.
|
|
Made for Space Saving
|
 |
Designed with versatility in mind, perfect for media & home theater PCs, in-vehicle systems, computer repair shops, and forensic systems. flexiDOCK makes it easy to connect any 2.5" or 3.5" SATA SSD/HDD whether you're an IT professional testing many drives regularly or adding additional storage to a home PC.
|
 |
|
|
|
 |
|
Adding a 2.5" and 3.5" HDD / SSD has never been easier than with the flexiDOCK, simply press in any bare drive and you're ready to go.
|
|
 |
|
The recessed front panel is designed to make removing either drive as convenient as possible, simply grab the bare 3.5" drive from the sides and pull to eject. |
|
 |
|
The 2.5" drive sticks out from the enclosure slightly to allow easier grip when pulling out the 2.5" drives with your fingers, making it an ideal hot-swappable drive docking station for your HDD or SSD.
|
|
Safety Enhanced Drive Guiding Mechanism
|
|
 |
|
Installing a 2.5" or 3.5" drive is aided by the dual-action drive guiding mechanism and stabilizer. This ensures that the drive maintains a firm and reliable connection to the internal SATA connector, and protects against damage if the system is bumped.
|
|
Packed with Features
|
|
To know when your drive is powered on or in use, an individual LED status light is included for both the 2.5" and 3.5" drive bay. A solid blue light indicates the device has power, and a flashing blue light is shown when the drive is in use.
|
 |
Each drive bay has its own power switch, allowing you to physically cut power to either drive without having to fully remove it from the flexiDOCK. This reduces wear on the internal connectors due to constant swaps, and lets you keep your most sensitive data in cold storage until it is needed.
|
 |
For additional protection, the flexiDOCK MB795SP-B supports both 7-pin SATA data and 15-pin SATA power cables with locking latches, so you'll never have to worry about cables accidentally disconnecting from your enclosure. Once these cables are connected, they'll lock into place and stay that way. |
 |
The metal outer chassis provides maximum longevity and protection for your sensitive data, and the strong ABS plastic internals allow the drive stability system to be flexible without sacrificing strength. |
 |
Ventilation holes are amply placed throughout the enclosure maintain optimal temperatures whether you're using just the 3.5" drive, just the 2.5" drive, or both. The wide open front panel and the rear vent holes work with your computers fans to remove heat and keep your drives cool. |
 |
To take full advantage of larger mechanical HDDs, flexiDOCK supports full-height 15mm 2.5" drives when the 3.5" bay is not in use. When using a 3.5" and a 2.5" drive, the 2.5" bay still supports most 2.5" HDDs and SSDs available, up to 9.5mm in height. |
 |
To prevent the buildup of dust, which can clog internal connectors and inhibit airflow, a retractable dust cover is installed to protect the 3.5" bay. The retractable dust cover is easily pushed in when a 3.5" drive is installed. |
|
|
Optional EZConvert MB703M2P-B for M.2 SATA SSD
|
|
 |
|
If you are looking to use a M.2 SATA SSD with the flexiDOCK MB795SP-B, pair it with our EZConvert MB703M2P-B M.2 SSD to 2.5” form factor adapter featuring tool-less adjustable locker to secure your M.2 in place. To learn more about EZConvert MB703M2P-B please click HERE.
|
|
|
Optional 2.5" to 3.5" SSD/HDD Converter
|
|
 |
If you would like to use two 2.5" drives at the same time, the optional EZConvert MB882SP-1S-3B is an unique converter that is able to transform your 2.5" drive into a 3.5" HDD form factor within seconds without any tools.
|
|
|
Key Features
|
|
|
• |
Compatible with any standard 5.25" external bay |
• |
Fits 1x 3.5" SATA HDD and 1x 2.5" SATA HDD/SSD (up to 9.5mm height while 3.5" drive is in use) |
• |
Dual-purpose drive guiding mechanism & stabilizer |
• |
Retractable dust cover to protect the internal connectors from dust buildups |
• |
Tray-less, screw-less, door-less drive installation |
• |
Both bays are powered by a single 15-pin SATA power connector |
• |
Cool blue drive activity LED for each bay, solid blue for power, flashing blue for drive activity |
• |
Front-access power switches for each bay, physically disconnect power without removing drive |
• |
Ideal storage upgrade kit for small-form-factor systems with limited expansion space such as compact gaming PCs, media center PCs, HTPCs, in-vehicle computers and home servers |
• |
Supports SATA data and power cables with locking latch designs |
• |
Industry leading 3-year warranty with exceptional customer support. |
|
|
|
 |
3 Years Warranty
|
|
Product Name :
|
Tray-less 2.5" and 3.5" SATA SSD/HDD Docking Enclosure for External 5.25" Drive Bay
|
|
|
|
Support Drive Size :
|
1 x 2.5" SSD/HDD & 1 x 3.5" HDD
|
|
Compatible Drive Type :
|
SATA
|
|
|
Max Drive Height :
|
1 x 2.5" up to 9.5mm (No height limit when installed alone)
1 x 3.5" HDD up to 26.1mm height
|
|
Drive Bay :
|
1 x external 5.25" drive bay
|
|
Host Interface :
|
2 x SATA 7pin
|
|
Power Input :
|
1 x 15 pin SATA power connector
|
|
Transfer Rate :
|
Up to 6Gbps (Depending on hard drive speed)
|
|
Support HDD Capacity :
|
No Limitation
|
|
Drive Cooling :
|
Metal heat dispersion
|
|
Structure / Material :
|
Metal and plastic
|
|
|
Product Dimension (W x H x D) :
|
145.8 x 41.3 x 170.6mm
|
|
Product Net Weight :
|
348g
|
|
Package Gross Weight :
|
416.6g
|
|
Drive Activity LED Indication :
|
Drive power: solid blue; HDD access: flashing blue
|
|
Package contents :
|
Device, user manual, screws
|
|
SATA Connector Insertion Rate :
|
10,000
|
|
|
Operating Temperature :
|
0°C to 60°C (32°F to 140°F)
|
|
Storage Temperature :
|
-35°C to 70°C (-31°F to 158°F)
|
|
Compliance :
|
CE, RoHS, REACH
|
|
|
Product Reviews |
Published in 2020
OverClockedInside
ICY DOCK MB795SP-B & MB703M2P-B Review

"The advantage of the flexiDOCK MB795SP-B is that you can simply slide a 2.5” SSD and/or a 3.5” HDD into the removable frame while it is being operated and then decide at any time when the drive is activated. In addition, an activity LED for each drive is located on the front next to each slide switch....."
Read full review: https://www.ocinside.de/review/icy_dock_mb795sp_b_mb703m2p_b/
|
|
|
Published on March 23, 2019
Tweaktown - Chris Ramseyer
Home Reviews Storage Enclosures/Externals Icy Dock flexiDock MB795SP-B Review - 3.5" & 2.5" Single Bay

"Icy Dock makes a ton of different products, and I use many of them in my test lab. When the company recently asked me to look over the new products ready for 2019 one stood out for its ability to solve a long lingering issue I face with several test systems...."
Read full review: https://www.tweaktown.com/reviews/8942/icy-dock-flexidock-mb795sp-review-3-5-2-single-bay/index.html
|
|
|
Frequent Asked Questions |
Q: Does MB795SP-B support the new SATA 3.3 Power Disable feature (PWDIS)? |
A: The MB795SP-B does not support the SATA 3.3 PWDIS feature. If you install the SATA HDD/SSD with PWDIS in MB795SP-B, the drive will not spin, and the system won't detect the drive. See the list below for known SATA HDD/SSD with the PWDIS feature.
Known SATA HDD/SSD with Power Disable Feature (PWDIS)
WD |
Ultrastar DC HC510
HUH721008ALE600/1/4 |
HUH721010ALE600/1/4 |
HUH721008ALN600/1/4 |
HUH721010ALN600/1/4 |
|
|
|
Ultrastar DC HC520
HUH721212ALE600/4 |
HUH721212ALN600/4 |
|
|
Ultrastar He8
HUH728060AL4200/1/4/5 |
HUH728060AL5200/1/4/5 |
HUH728080AL4200/1/4/5 |
HUH728080AL5200/1/4/5 |
|
|
|
Ultrastar 7K6000
HUS726020ALE610/1/4 |
HUS726040ALE610/1/4 |
HUS726050ALE610/1/4 |
HUS726060ALE610/1/4 |
HUS726020ALN610/1/4 |
HUS726040ALN610/1/4 |
HUS726050ALN610/1/4 |
HUS726060ALN610/1/4 |
|
|
Ultrastar C15K600
HUC156030CS4200/1/4/5 |
HUC156045CS4200/1/4/5 |
HUC156060CS4200/1/4/5 |
HUC156030CSS200/1/4/5 |
HUC156045CSS200/1/4/5 |
HUC156060CSS200/1/4/5 |
|
Samsung |
PM883
MZ7LH240HAHQ |
MZ7LH480HAHQ |
MZ7LH960HAJR |
MZ7LH1T9HMLT |
MZ7LH3T8HMLT |
MZ7LH7T6HMLA |
|
Seagate |
EXOS 7E8
ST1000NM0045 |
ST1000NM0075 |
ST2000NM0045 |
ST2000NM0085 |
ST3000NM0025 |
ST3000NM0035 |
ST3000NM0045 |
ST4000NM0025 |
ST4000NM0065 |
ST4000NM0135 |
|
|
|
EXOS 15E900
ST300MP0006 |
ST300MP0016 |
ST300MP0026 |
ST300MP0096 |
ST300MP0106 |
ST300MP0116 |
ST600MP0006 |
ST600MP0016 |
ST600MP0026 |
ST600MP0036 |
ST600MP0126 |
ST600MP0136 |
ST600MP0146 |
ST600MP0156 |
ST900MP0006 |
ST900MP0016 |
ST900MP0026 |
ST900MP0126 |
ST900MP0136 |
ST900MP0146 |
ST900MP0156 |
ST900MP0166 |
|
|
|
Note: the SAS hard drive or SSD does not use the Pin 3 of SATA power connector for PWDIS feature and compatible with MB795SP-B.
While we recommend to avoid using the SATA HDD/SSD with PWDIS, you can use the methods below to disable the PWDIS feature physically if you already purchased the drive:
Method 1 – Using the Molex to SATA adapter or cable to disconnect the power to Pin 3 of the SATA power connector.
 |
|
 |
Molex to SATA Adapter |
|
Molex to SATA Cable |
Method 2 – Placing Kapton tape on Pin 1-3 of the SATA power connector to isolate the 3.3V power, as shown below.
Please contact tech@icydock.com if the problem persists.
|
