Introducing the Icy Dock ToughArmor MB991IK-B 2.5" SAS / SATA Mobile Rack solution for use in external 3.5" drive bays (Floppy bay). The main purpose is to provide a small form factor device built specifically for systems in a small real estate to work with, specifically for 2.5 SAS hard drives or SSDs. Because of the high performance and reliability factor of SAS drives, it is crucial for the storage solution to be just as sturdy as the drive being used. By using a rugged heavy duty metal construction, it is capable to withstand the harshest enterprise type environments. The drive is fully secured by our proven technologies such as, the Eagle-Hook lock system and metal 2-segment safeguard key. Our full metal EZ Slide Mini Tray allows interchangeability of data between multiple systems with other compatible ToughArmor products. Suggested applications in Medical & Military systems, Media servers, and IPCs, approved by Tier 1 companies.
Efficient Space Use
The MB991IK-B is perfect for use in industrial PCs, SMB SFF servers, mobile DVR systems, or even home servers. These systems tend to use components that provide the needed features, in the smallest form factor available. The ability to house one SAS / SATA SSD or HDD in a single 3.5” bay makes it a valuable asset in specific applications such as, integration into an industrial imaging or medical device.
Rugged Full Metal Protection
Making sure that the material used is designed in a way where it can be relied upon for many years after its deployment. The MB991IK-B is capable of holding up in the harshest environments, with the heavy duty metal construction throughout the entire device. With the rugged Full Metal design, the ToughArmor is perfect for industrial and medical devices that may require a flammability rating as the full metal material is considered to be already compliant with flammability requirements. So because of the high build quality and compatibility, it can be used various enterprise systems including: military and law enforcement deployment, as well as manufacturing conditions such as embedded control systems and factory automation systems.
The rugged full metal design also allows efficient heat dissipation transfer from the hard drives throughout the mobile rack. In addition, Multi-Flow Technology effectively routes air flow correctly for excellent passive cooling in key ventilation slots on the front, rear, top and bottom. Lastly, Anti-Vibration Technology and EMI Grounding are used to provide a stable environment for the hard drives or SSDs used to perform at its best.
Convenient Utility & Accessibility
The front of the ToughArmor includes a status LED when the drive is powered on, off and accessed. Active Power Technology (APT) allows the status LED to be on only when a hard drive is inserted into the enclosure. For drive security, the eagle-hook lock system on the tray makes sure your hard drives will not eject when not needed. Additionally, the 2 segment key lock provides extra protection to theft of hard drives as well as safeguards any sensitive data.
The EZ Slide Mini trays make drive interchangeability and maintenance completely hassle free, in case of a hard drive failure. With a simple swap of the hard drive, your overall down time is greatly reduced especially if this occurs when it is time sensitive. The trays are also designed to accommodate 5 to 15mm height hard drive and SSD, creating a 2.5" hot swap bay for any standard SAS / SATA hard drives and SSDs. While the tray is not installed to the MB991IK-B, the Anti-Dust Flap feature helps prevent dust from entering into the mobile rack.

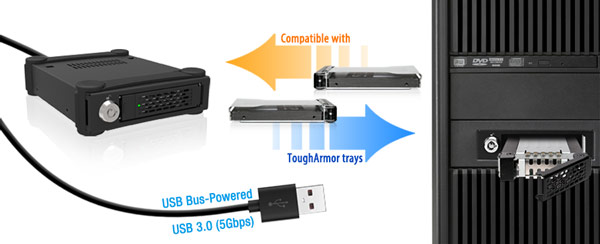

To access your data outside of your system or in a remote location, the ToughArmor MB991U3-1SB is the way to go about. The drive tray slot of MB991U3-1SB is compatible with a variety of ToughArmor drive trays including the ToughArmor MB991, MB992, MB994, MB996 and MB998 series. This allows existing ToughArmor users to access their internal drive externally without opening up the case. It is a great tool for an individual drive diagnostic test. If you need to do a safe data erase or just simply expending system storage capacity, just remove the tray from the internal ToughArmor unit and insert it in the MB991U3-1SB to perform individual tasks externally with USB 3.0 interface. Best of all, the MB991U3-1SB uses USB bus-powered and it does not require a power adapter to operate. Simply connect the USB cable to any system and you are ready to go.
>>>Beware of the third-party ToughArmor tray, CLICK HERE for the details<<<
Interchangeable Internal ToughArmor:
Interchangeable External ToughArmor:
Key Features
*
Rugged heavy duty full metal construction with suggested applications in Imaging, Medical, and Military systems, Media servers, and IPCs, approved & used by Tier 1 companies.
*
Fits 1 x 5mm to 15mm 2.5” SAS/SATA HDD or SSD in external 3.5” drive bay.
*
Rugged heavy Duty Full Metal construction, perfect for enterprise applications.
ICY DOCK ToughArmor MB991IK-B Full Metal 2.5 inch Hot-Swap Dual Channel SATA / SAS HDD / SSD Mobile Rack Backplane Cage for External 3.5" Drive Bay
Product Name :
2.5" Hard Drive & SSD Mobile Rack for 3.5" Device Bay
Model Number :
MB991IK-B
Color :
Black
Support Drive Size :
2.5" SSD / HDD
Compatible Drive Type :
SATA / SAS (SAS host required / Dual channel)
Number of Drives :
1
Max Drive Height :
15mm
Drive Bay :
1 x 3.5" floopply drive bay
Host Interface :
2 x SATA 7pin
Power Input :
1 x 15 pin SATA power connector
Transfer Rate :
SATA 3.0 up to 6Gbps / SAS 3.0 up to 12Gbps
Support HDD Capacity :
No Limitation
Drive Cooling :
Metal heat dispersion
Structure / Material :
Full Metal
Support Hot-Swap :
Yes
Drive Security :
2 segment key lock
Product Dimension (L x W x H) :
133 x 101.2 x 25.4mm
Product Net Weight :
399g
Package Gross Weight :
457.3g
Drive Activity LED Indication :
Drive power: solid green; HDD access: flashing green
Package contents :
1 - Device, 1 - user manual, 8 - screw, 2 - key
SATA Connector Insertion Rate :
10,000
Humidity :
5%~65% RH
Operating Temperature :
0°C to 60°C (32°F to 140°F)
Storage Temperature :
-35°C to 70°C (-31°F to 158°F)
Compliance :
CE, RoHS, REACH
Warranty :
5 years limited warranty
Documents
Drawings
ICY Concepts
How to create a hybrid 2.5" storage array in a 5.25" bay with ICY DOCK
FLEX-FIT Trio & ToughArmor
To get the best bang for your buck, ICY DOCK offer cost-effective solutions to accommodate your data storage needs! By using a simple, yet functional 3.5" bay to 5.25" bay mounting kit, the FLEX-Fit Trio MB343SP, you can easily transform a 5.25" inch external drive bay in to a storage workhorse. Not only FLEX-FIT Trio accommodates 2x 2.5" SSD with tool-less drive installation design, it also allows placement of a 3.5" device bay, such as ICY DOCK's ToughArmor 2.5" drive mobile racks. This is where ICY DOCK's 3.5" ToughArmor series shines. By allowing a maximum of 5x 2.5" SAS / SATA hard drives or SSDs of 3.5" ToughArmor mobile rack in a FLEX-FIT Trio below. Let's take a look at them below!
- Converts 5.25" bay into external 3.5" bay
- Built-in 2x 2.5" drive bay
- Tool-less 2.5" drive installation design
- Compatible with all 3.5" devices & drives
- Supports 2x 2.5" SAS / SATA HDD / SSD
- Supports SATA 6Gbps & hot-swap
- Full metal construction w/ 3 year warranty
- Built-in RAID 0, RAID 1, JBOD & BIG
(MB992SKR-B)
- Supports 1x 2.5" SAS / SATA HDD / SSD
- Supports SATA 6Gbps & hot-swap
- Dual lock design for maximum drive security
- Full metal construction w/ 3 year warranty
- Supports 1x 2.5" SAS / SATA HDD / SSD
- Supports SATA 6Gbps & hot-swap
- Dual lock design for maximum drive security
- Full metal construction w/ 3 year warranty
Q: I feel that the drive tray's upper and lower metal spring is stuck when inserting the drive tray. What should I do?
A: Remove the drive tray from the enclosure and reinsert the tray without putting excessive pressure on the metal mesh sheet in front of the tray. Excessive force on the front metal mesh sheet may bend the top and bottom metal spring, causing difficulties when inserting the drive tray. Therefore, please do not forcingly insert the drive tray when this happens as it may cause damage to the metal spring.
Please DO NOT put excessive pressure on the metal mesh sheet as shown
Product Reviews
September 24th, 2010
Author: Jim Clark
" For under $30, you get a full-metal lockable hot-swap enclosure. What more could you ask for?"
"Judging from its rugged construction, it's quite obvious that the MB991IK-B was not just designed to be a typical mobile rack to be used in server rooms but also in conditions that aren't typically the most ideal computing environments. Researchers camped out, for example, or the military or SWAT teams or just about any situation where data security is paramount and durability from your computing components is demanded."
"The Icy Dock MB991lK-B comes with full support for SATA 6G and works very well with solid state drives without the loss of performance. Overall the Icy Dock MB991IK-B was very good in just about every area"
