Product Name :
|

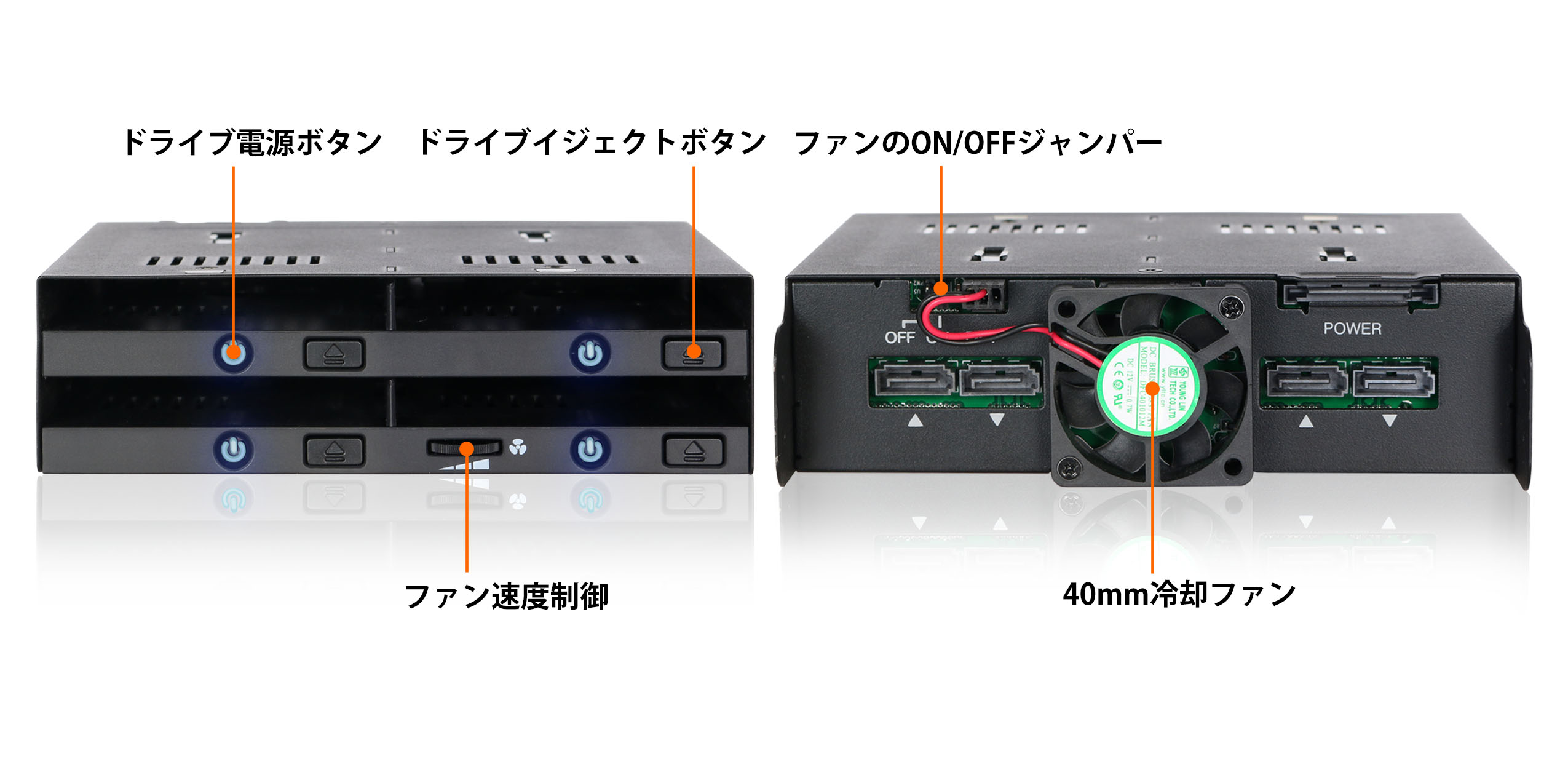

Quad Bay 2.5" SAS/SATA HDD/SSD Docking for External 5.25" Bay
|
|
|
|
Support Drive Size :
|
2.5" SSD / HDD
|
|
Compatible Drive Type :
|
SATA / SAS (SAS host required / Single channel)
|
|
|
|
Drive Bay :
|
1 x 5.25" drive bay
|
|
Host Interface :
|
4 x SATA 7pin
|
|
Power Input :
|
1 x SATA 15pin power
|
|
Transfer Rate :
|
Up to 6Gbps (Depending on hard drive speed)
|
|
Support HDD Capacity :
|
No Limitation
|
|
Drive Cooling :
|
1 x 40mm fan
|
|
|
Structure / Material :
|
Metal Body with parital plastic
|
|
|
|
Product Dimension (L x W x H) :
|
139 x 146 x 41.3 mm
|
|
|
Shipping (Package) Weight :
|
666.3g
|
|
RAID Status LED Indicator :
|
None
|
|
Drive Activity LED Indication :
|
Drive power: solid green; HDD access: flashing green
|
|
Package contents :
|
1 - Device, 1 - user manual, 10 - screw
|
|
Product Name :
|
4 x 2.5" SSD Dock Trayless Hot-Swap SATA / SAS Mobile Rack for Ext 5.25" Bay
|
|
SATA Connector Insertion Rate :
|
10,000
|
|
|
Operating Temperature :
|
0°C to 60°C (32°F to 140°F)
|
|
Storage Temperature :
|
-35°C to 70°C (-31°F to 158°F)
|
|
Compliance :
|
CE, RoHS, REACH
|
|
