CP045
Image Gallery
CONCEPT PRODUCTS

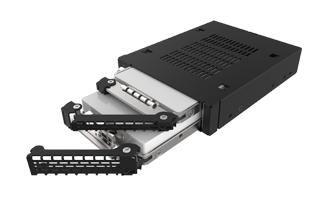

The CP045 is a full metal heavy duty 2.5” HDD / SSD cage specifically designed for Industrial PC, Media Workstations, High Performance Servers, Surveillance Systems, Medical Systems and Military Computers. The CP045 fits up to 2 x 2.5” SAS / SATA HDD / SSD (1x 7mm 2.5" drive and 1x up to 15mm 2.5" drive) in just 1x external 3.5” drive bay. The compact design allows you to create various storage configurations within limited space. For example, you can have a combination of 1x 7mm 2.5” SATA SSD with 1x 15mm 2.5” SAS HDD to fit inside an external 3.5"drive bay.



The CP045 uses passive-cooling system with massive amount of cutting ventilation slots on the front and back, and the metal material used grants heat dissipation transfer from the hard drives to the backplane cage. Lastly, Anti-Vibration Technology (AVT) and EMI grounding are used to ensure a stable environment for the hard drives or SSD’s used, dramatically improving reliability.


Key Features

*
Fits any standard external 3.5” drive bay
*
Supports 1 x 2.5” SAS / SATA HDD / SSD up to 7mm height and 1 x 2.5” SAS / SATA HDD / SSD up to 15mm height
*
Supports SAS / SATA HDD / SSD up to 6Gbps
*
EMI Grounding - protects hard drives from electrical damage
* Multi-Flow Technology (MFT) effectively routes air flow correctly for excellent passive cooling via ventilation slots.
* Heavy duty full metal construction with commercially designed for rugged computing systems
* Eagle-hook lock system & 2-segment safeguard key lock keeps drives secure within the enclosure
* Anti-Vibration Technology creates a safe environment for M.2 NVMe SSD
* Active Power Technology (APT) powers up individual LED if only there is drive installed in the drive bay
Specifications

Model Number :
CP045
Color :
Black
Host Interface :
2 x SATA 7 Pin
Power input :
1 x SATA 15 Pin
Drive Fit :
1 x 2.5” SAS / SATA HDD / SSD up to 7mm and 1 x 2.5” SAS / SATA HDD / SSD up to 15mm
Device Fit :
1 x External 3.5” Drive Bay
Maximum Transfer Rate :
(Depending on drive speed)
SAS / SATA Up to 6Gbps
Structure :
Full Metal
Drive Cooling :
Passive Cooling with Metal Heat Dissipation
Hot Swap :
Yes
HDD Access Indicator :
Device Power : Solid Green
Drive Activity : Flashing Green
No Drive : LED Off
Dimension (L x W x H) :
133 x 101.2 x 25.4mm
Weight :
370g(TBD)

3 Years Warranty
