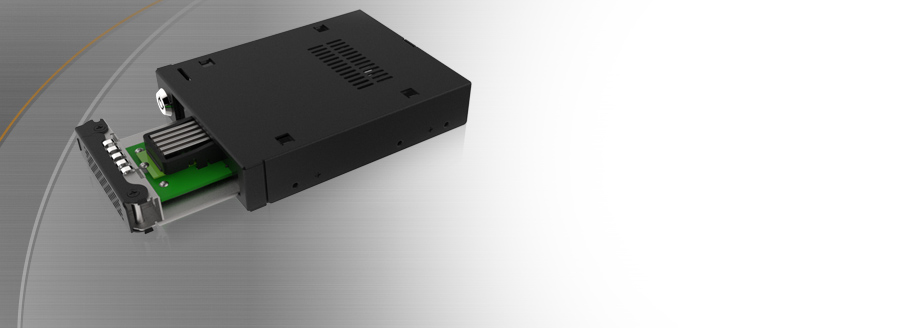

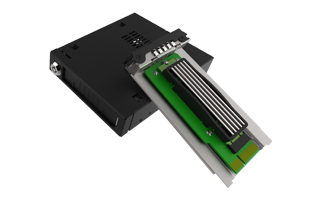

CP048 is a full metal constructed M.2 NVMe to U.2 NVMe PCI-Express 3.0 x4 SSD mobile rack in a 3.5" external device bay. It is specifically designed for Industrial PC, Media Workstations, High Performance Servers, Surveillance Systems, Medical Systems and Military Rugged Computers. The CP048 fits 1x M.2 NVMe PCI-Express 3.0 x4 SSD (2230/2242/2260/2280) in a 3.5" external device bay via M key connector but rear connection becomes Intel certified U.2 connector support up to PCIe Gen 3.0 x4 32 Gb/s transfer speed. The small footprint design packs a powerful PCIe SSD within limited space and provides easy frontal access for drive swapping and drive maintenance.


The CP048 uses passive-cooling system with massive amount of cutting ventilation slots on the front and back, and a heat sink is included to be directly attached onto M.2 PCIe SSD for heat dissipation transfer from the hard drives to the surrounding metal casing. Lastly, Anti-Vibration Technology (AVT) and EMI grounding are used to ensure a stable environment for the hard drives or SSD’s used, dramatically improving reliability.

Key Features
Fits into any standard external 3.5" device bay
Supports 1 x M.2 NVMe PCI-Express 3.0 x4 SSD (2230/2242/2260/2280)
Supports hot swap (required U.2 host)
Supports PCIe Gen 3.0 x 4 32 Gb/s transfer speed
M.2 SSD heat sink and thermal paste are included (one set)
EMI Grounding - protects hard drives from electrical damage
Multi-Flow Technology (MFT) effectively routes air flow correctly for excellent passive cooling via ventilation slots.
Heavy duty full metal construction with commercially designed for rugged computing systems
Eagle-hook lock system & 2-segment safeguard key lock keeps drives secure within the enclosure
Anti-Vibration Technology creates a safe environment for M.2 NVMe SSD
Active Power Technology (APT) powers up individual LED if only there is drive installed in the drive bay
Model Number :
Color :
Host Interface :
1 x U.2 (SFF-8639)
Drive Fit :
1 x M.2 NVMe PCI-Express 3.0 x4 SSD, M-Key
Device Fit :
1 x External 3.5" Drive Bay
Maximum Transfer Rate :
PCIe Gen3.0 x4 up to 32Gbps
Power Input :
1 x SATA 15pin
HDD Access Indicator :
Device Power: Solid Green
Device Activity: Flashing Green
Device Empty: LED Off
Hot Swap :
Key Lock :
Structure :
Full Metal
Package Content :
Device, User Manual, Screws, Keys
Dimension (L x W x H) :
135.1 x 101.6 x 25.4mm
Weight :
3 Years Warranty
