CP046
Image Gallery
CONCEPT PRODUCTS

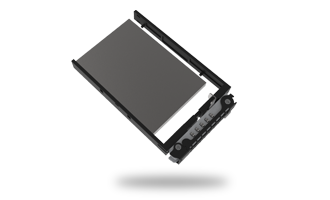

CP046 is a revolutionary product that changes the way people uses Dell's proprietary tray. CP046 is a Dell Poweredge/ PowerVault Server compatible tray and it allows tool-less drive installation, which saves time for technician who frequently needs to install/uninstall drive from the tray. Also, company, who initially does not recycle the Dell's tray because of labor/cost prohibitive drive installation/un-installation, now can use CP046 to make the tray re-useable, saving time and money from purchasing a new tray per a new drive.

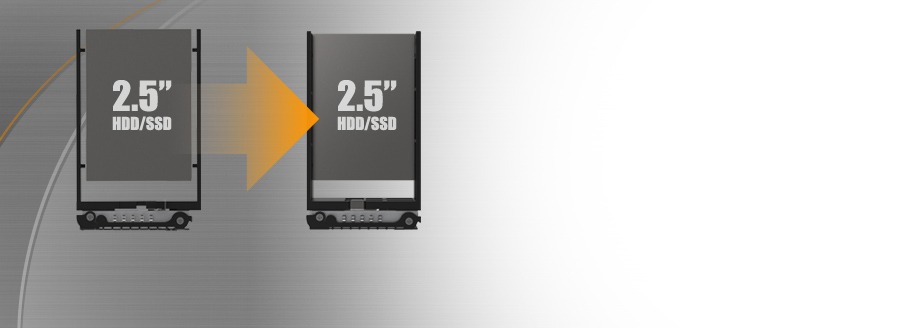

CP046 supports up to 15mm 2.5" SAS/SATA drive and it does not require a single screw for drive installation. The drive installation can be achieved simply by lifting of the latching lever to expand the plastic side rails for drive insertion and reverse the process to secure the drive. Two preinstalled protruding pegs are on each side of the rail to ensure drive stability.



The CP046 uses passive-cooling system with massive amount of cutting ventilation slots on the front and back, and the metal material used grants heat dissipation transfer from the hard drives to the backplane cage. Lastly, Anti-Vibration Technology (AVT) and EMI grounding are used to ensure a stable environment for the hard drives or SSD’s used, dramatically improving reliability.


Key Features

*
Supports 1 x 2.5" SAS/SATA HDD/SSD with height up to 15mm
*
Screw-less drive tray design - install or interchange new drives within seconds
*
Compatible with Dell PowerEdge / PowerVault Server
Specifications

Model Number :
CP046
Color :
Iron Gray (Depending on Dell 8FKXC Tray Rail Color)
Drive Fit :
1 x 2.5" SAS/SATA Device (Up to 15mm height)
Device Fit :
Dell PowerEdge / PowerVault Server
Structure :
Metal with partial plastic
Dimension (L x W x H) :
79.9 x 19.6 x 136.3mm
Weight :
50.5g(TBD)


3 Years Warranty
