CP060
Image Gallery
CONCEPT PRODUCTS


The CP060 is a compact solution that allows hot swapping M.2 NVMe drives without the hassle of opening up the computer chassis. Fitting inside a single 3.5” external space, two M.2 NVMe drives can be used and swapped using our quick swapping trays. In addition, the tray allows for the use of heatsinks for your M.2 drives, keeping them in optimal temperatures for maximum performance. In term of the material, the chassis is made of full metal to ensure best quality and durability. Each bay also comes with a power switch button to allow the usage of multiple operating systems on in a single machine and to perform various applications at the same time.



CP060 is designed for high performance PCs and workstations that are utilized in today's data and speed hungry applications such as biometric recognition systems and hyper convergence systems.


Key Features

*
Fits 1 x 3.5” external drive bay
*
Supports 2 x 2280 M-Key M.2 SSD with easy front access
*
Heavy duty full metal construction design - perfect for enterprise applications
*
Heat sink provided for each M.2 SSD for maximum heat dissipation
*
Individual On/Off power slide switch for each bay
*
Removable tray system for easy maintenance
*
Supports PCIe Gen 3.0 x 4 up to 32Gbps
*
Multi-Flow Technology (MFT) effectively routes air flow correctly for excellent passive cooling via ventilation slots
*
EMI Grounding protects hard drives from electrical damage
*
Active Power Technology (APT) powers up individual LED & cooling fan if only there is drive installed in the drive bay
Specifications

Model Number :
CP060
Color :
Black
Host Interface :

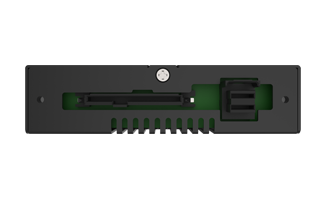

1 x miniSAS HD (SFF-8643), 1 x U.2 (SFF-8639)
Drive Fit :
2 x 2280, M-Key, PCIe Gen 3.0 x 4 M.2 SSD
Device Fit :
1 x External 3.5" Drive Bay
Maximum Transfer Rate :
Depending on hard drive speed
PCIe Gen 3.0 x 4 up to 32Gbps
Power Input :
1 x SATA 15 Pin
HDD Access Indicator :
Device Power : Solid Green
Device Activity: Flashing Green
Device Empty: LED OFF
Hot Swap :
Yes
HDD Power Switch :
Yes
Structure :
Full Metal
Package Content :
Device, User Manual, Screws
Dimension (W x H x D) :
101.6 x 25.4 x 135.1mm
Weight :
450g(TBD)

3 Years Warranty
