CONCEPT PRODUCTS

Compact Design with Utility in Mind

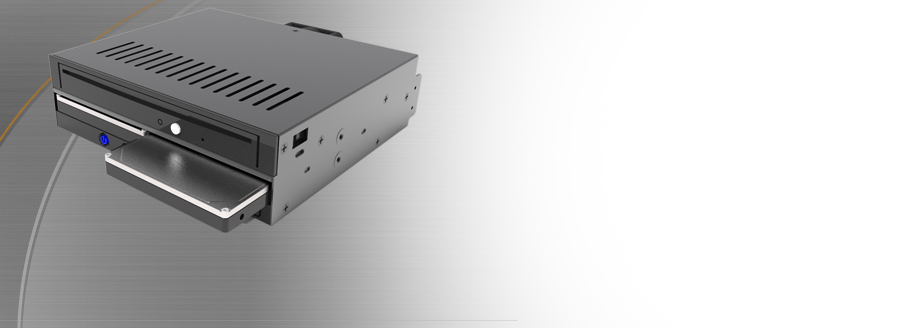

The CP033 is a multi-function 5.25” mobile rack backplane cage designed for compact computer such as HTPC, home server and mobile PC, it offers two hot-swappable 2.5” drive slots which allow user quickly swap any 2.5” SSD / HDD without using tools. With support for a slim optical drive (ODD), user can finally get rid of their bulky 5.25” DVD-ROM and save the space for more worthy devices.

Fast Drive Swapping, Specially Engineered



The two 2.5” SATA HDD/SSD slots use no trays, allowing for easy access to drive data without dealing with mounting and screwing drive onto trays. The drive docking design also makes drive swapping quick and simple. Nothing is more effortless than insert and power on to use and power off and eject when finished.



Improvement Made Easy



For support for optical media, a space for slim optical drives is provided on the unit, replacing a standard 5.25 optical disk drive. This allows space saving and utilize gained space for drive storage.



Designed for Convenience



A 40mm fan with adjustable fan speeds provides ventilation for the drives in the unit. The control for the fan speed is conveniently in the front, allowing to adjust the speed to match the need. A power button is dedicated for individual drive slot for an easy drive management, especially useful with multiple OS system. The shell is full metal for maximum durability while the internals are support with high grade ABS which reduces drive vibrations.


Key Features

*
Tray less design supporting 2.5” hard drives without the use of tools and screws
*
Drive door-less design and accepts bare drives without trays or holders
*
Individual large drive eject button
*
Flush in design for full drive protection from possible environmental damage
*
Durable metal chassis with strong ABS internal support
*
Fits 2 x 2.5” SATA/SAS HDD or SDD (up to 12.5mm height) & 1 x slim optical drive (ODD, 12.7mm)
* Individual power switches and drive activity indicator LED for each 2.5” bays.
* • Individual SATA/SAS(single channel) III interface with 6Gbps connection for each hard drive or SSD.
* • Adjustable 40mm fan speed control from off to high power
* Perfect for SFF (small form factor) case, IPC, HTPC, NAS, Home Server and All-In-One computers
3 Years Warranty
Model Number :
CP033
Color :
Black
Host Interface :
SATA ; SAS (Single Channel)
ODD Fit :
1 x 12.7mm Slim ODD
Drive Fit :
2 x 2.5" SATA / SAS HDD/SSD
Device Fit :
1 x external 5.25" bay
Maximum Transfer Rate
SATA up to 6Gb/s (Depending on hard drive speed)
SAS up to 12 Gb/s (Depending on hard drive speed)
Power Input :
1 x SATA 15 pin power connector
Structure :
Metal and partial plastic
Power Switch :
Yes (Front panel of fan speed VR controller, fan power On/Off switch)
Fan Switch :
Yes
Fan :
Yes (1 x 40mm fan)
HDD Access Indicator :
Device power : Solid blue
Drive activity : Flashing blue
Hot Swap :
Yes
Weight :
240.5g
Dimension (L x W x H) :
146 x 43.1 x 203mm
