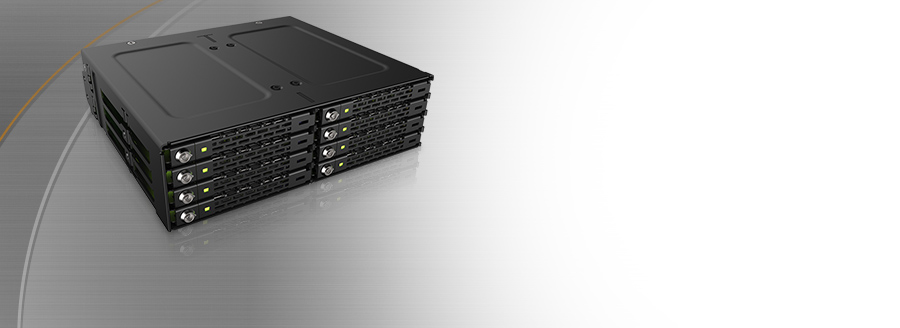

Fitting inside a single 5.25 external bay, the CP055 is our most compact solution for NVMe, providing an impressive amount of ultra-fast M.2 NVMe storage in a compact space, perfect for workstations and servers dealing with large quantity of uncompressed data such high resolution photos, 4K videos, and expansive data worksheets. Our tray system allows for easy access for multiple M.2 drives and providing an easy platform to mount M.2 drives. Individual key locks on each tray allow individual drives to be secured, in order to prevent accidental ejections and unauthorized physical access. All the metal trays are enclosed in a full metal cage, rugged for tough environments, such as industrial plants, the military, and any physical environment where durability is a factor. Eight individual miniSAS HD ports are in the rear of the unit, allowing each NVMe drive in the unit to go at full 32 Gb/s speeds individually. Ventilation slots are designed in front of the tray allowing for greater airflow to help dissipate heat. With combination of heatsinks, drives will have less heat build up, allowing the drives to consistently perform at full speeds without heat throttling the performance of the ultra-fast M.2 drives.

Key Features
Fits 8 x 2280, M-key M.2 SSD in a single external 5.25" bay
Rugged Heavy duty full metal construction - Perfect for rugged applications and complies to flammability requirements
Each tray utilize heatsink along with thermal pads to provide proper cooling
Individual 2-segment tray lock protects sensitive data within the enclosure
Eagle-hook lock system & custom made steel key lock keeps drives secure within the enclosure.
Indicator LED provided for each bay to monitor drive activity
Supports hot-swap (Host required U.2 connection)
Supports PCIe Gen 3.0 x 4 up to 32Gbps
Supports 2 x SATA 15pin power cable with locking latch
EMI Grounding – protects SSDs from electrical damage
Anti-Vibration Technology (AVT) - creates a safe environment for SSDs
Active Power Technology (APT) - only powers up if there is drive installed in the drive bay
Model Number :
Color :
Host Interface :
8 x miniSAS HD (SFF-8643)
Drive Fit :
8 x 2280, M-Key, PCIe Gen 3.0 x 4 M.2 SSD
Device Fit :
1 x External 5.25" Drive Bay
Maximum Transfer Rate :
Depending on SSD speed
PCIe Gen 3.0 x 4 up to 32Gbps
Power Input :
2 x SATA 15pin
SSD Access Indicator :
Device Power: Solid Green
Device Activity: Flashing Green
Device Empty: LED Off
Hot Swap :
Key Lock :
Structure :
Full Metal
Package Content :
Device, User Manual, Screws, Keys
Dimension (W x H x D) :
145 x 41.3 x 172mm
Weight :
3 Years Warranty
