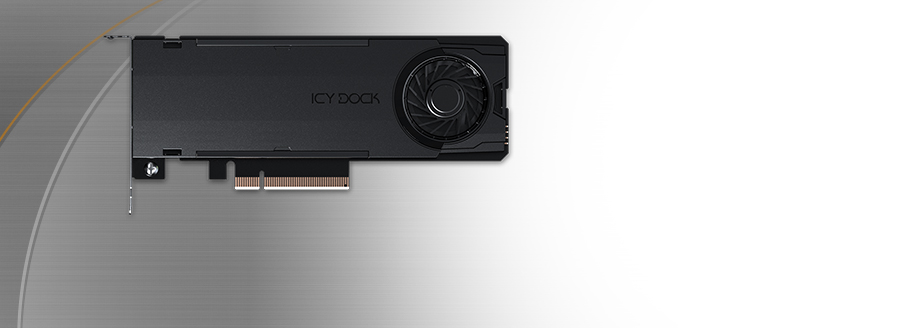

The concept product CP073 is a dual M.2 NVMe SSD adapter for PCIe 4.0 x8 / x16 expansion slot, accommodating two M.2 NVMe SSDs in a compact space with up to 8,000MB/s transfer speed per drive slot.

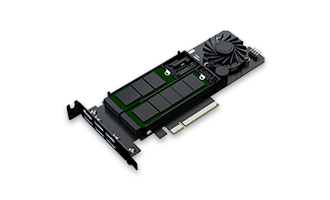

The removable drive tray is designed specifically for a simple installation with the tool-less drive clamp that latches onto the M.2 drive to secure in place. In addition, the adjustable locker on the drive tray is compatible with various NVMe sizes ranging from 30 to 80mm in length (2230 / 2242 / 2260 / 2280).

Utilizing the PCIe 4.0 x4 interface provides power and data transfer simultaneously, ultimately reducing cable clutter in the system and supporting blazing-fast transfer speed up to 8,000MB/s per drive.

The CP073 is equipped with aluminum heatsinks, thermal pads, and a 50mm blower fan to maintain the ideal operating temperature and prevent M.2 NVMe SSDs from overheating, which causes performance degradations.

Key Features

*	Fits 2 x M.2 NVMe SSD (2230 / 2242 / 2260 / 2280) in a single x8 / x16 PCIe expansion slot
*	Support PCIe 4.0 x8 with transfer speeds up to 8,000MB/s per drive slot
*	PCIe interface provides both power and data transfer which ultimately reduce cable clutter
*	Includes heatsink and thermal pad for maximum heat dissipation
*	Equipped with a 50mm blower fan provides maximum cooling to M.2 NVMe SSD
*	Drive activity lights indicate drive activities include overheating
*	Optional 4-pin header to connect chassis’ front LED to monitor drive activity
*	Honeycomb-like I/O panel for optimal passive cooling
*	Active Power Technology (APT) – LED and cooling fan only powers up when the drive is installed into the drive slot

Specifications

Model Number :

CP073

Available Colors :

Black

Host Interface :

1 x PCIe 4.0 x8 Golden Finger

Drive Fit :

2 x M.2 NVMe PCIe 4.0 x4 SSD
(Compatible with 2230 / 2242 / 2260 / 2280)

Device Fit :

1 x Single PCIe x8 / x16 Slot

Maximum Transfer Rate :

PCIe 4.0 x8 up to 16GB/s

Power Input :

1 x PCIe Golden Finger

LED Indicator :

Device Power: Solid Green
Device Activity: Flashing Green
Empty: LED Off

Alarm Indication :

Audio & Visual (Overheat LED indication: Solid Red)

Cooling System :

1 x 50mm Blower Fan

Heatsink :

Aluminum (Black)

Structure :

Metal IO Bracket with PCBA and Plastic Shield

Package Content :

Device, User Manual, 2 x Thermal Pad

Dimension (W x H x D) :

128.3 x 52 x 254 mm

Weight :

250 g(TBD)
