CP065
Image Gallery
CONCEPT PRODUCTS


The CP065 allows storage of up to eight M.2 SATA drives in a single 5.25" bay. Each M.2 drive has its own drive tray, with a heatsink on top of each tray, to reduce overall temperatures on the drive and maintain peak performance. While M.2 trays are designed to be removable, CP065 allows easy swaps between M.2 drives which introduce convenience for users. On top of that, the drive cage has two fans installed to provide extra airflow inside the unit and draw away excess heat produced by the M.2 drives. In term of connectivity, each miniSAS HD port can connect up to four M.2 drives to the computer, reducing the cable clutter and providing easier maintenance.



CP065 is ideal for mini-servers and embedded systems, where its most favorable traits are reducing space usage and use lowered power consumption M.2 drives. By using CP065, any small foot print systems with spare 5.25” bay can now utilize the extra storage capacity along with the easier swapping of drives and ultimately expand the functionality of each system!

Key Features

*
Hot-Swap 8 x M.2 SATA SSD (22 x 80mm dimension)  in a single external 5.25" bay
*
Rugged Heavy duty full metal chassis construction
*
Tool-less M.2 SSD installation into pen drive plastic tray
*
Pen drive plastic tray design provides easy front drive access/hot-swap
*

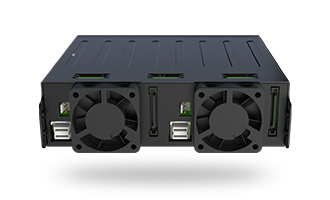

2 x 40mm cooling fan, replaceable with aftermarket fans without disassemble entire device
*
Rear 3-Speed Fan control (Hi/Low/Off)
*
Cool blue Individual LED drive status indicator
*
Supports SATA 6Gbps transfer speed
*
Device power via miniSAS HD, reducing cable clutters
*
Supports SATA 15pin power locking latch cables
*
EMI Grounding – protects hard drives from electrical damage
*
Active Power Technology (APT) - only powers up if there is drive installed in the drive bay
Specifications

Model Number :
CP065
Color :
Black
Host Interface :
2 x miniSAS HD (SFF-8643)
Drive Fit :
8 x M.2 SATA SSD (Compatible with 2230 / 2242 / 2260/ 2280)
Device Fit :
1 x External 5.25" Drive Bay
Maximum Transfer Rate :
Depending on hard drive speed
Support SATA 6Gbps
Power Input :
2 x SATA 15pin
LED Status Indicator :
Device Power: Solid Blue
Device Activity: Flashing Blue
Device Empty: LED Off
Drive Cooling :
2 x 40mm Fan
Fan Switch :
Yes
Structure :
Metal with Partial Plastic
Package Content :
Device, User Manual, Screws
Dimension (W x H x D) :
146 x 41.3 x 172mm
Weight :
550g(TBD)

3 Years Warranty
